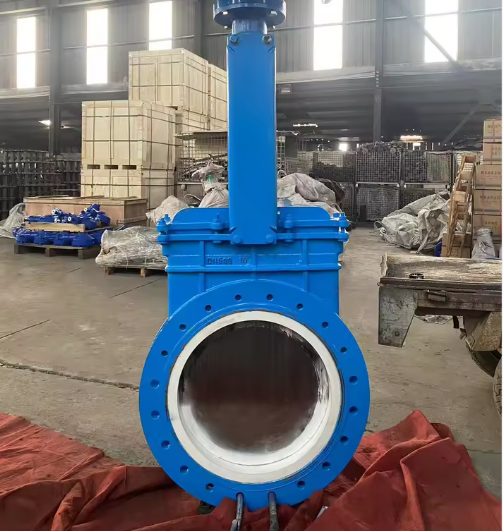

The cast steel flanged knife gate valve is a robust and reliable industrial valve designed to handle highly viscous and abrasive media such as slurry, sludge, pulp, powder and corrosive fluids. Its cast steel body offers superior mechanical strength and durability, making it suitable for demanding applications in mining, wastewater treatment, chemical processing and power generation industries.

Equipped with a sharp and durable blade (knife gate), this valve efficiently cuts through sticky or semi-solid media, ensuring smooth flow and minimizing clogging. The flanged ends conform to standard ANSI/ASME or DIN face-to-face dimensions, facilitating easy installation and maintenance in existing pipeline systems. The knife gate mechanism also provides excellent bidirectional sealing when the gate is fully closed, reducing leakages and improving process efficiency.

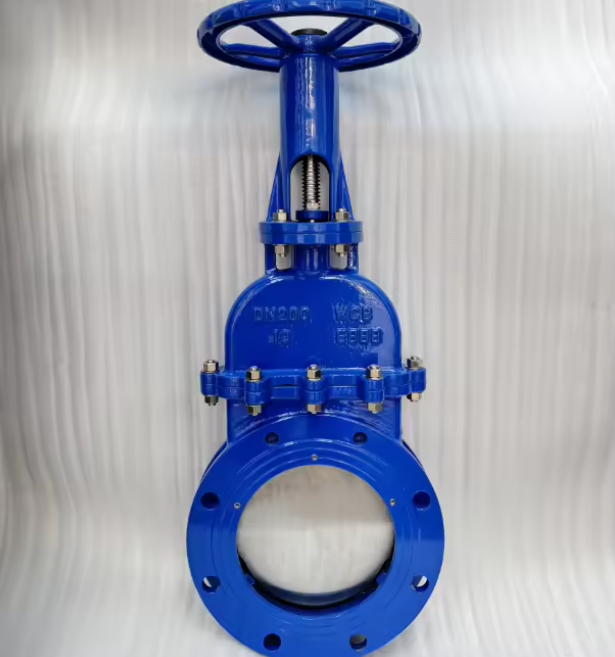

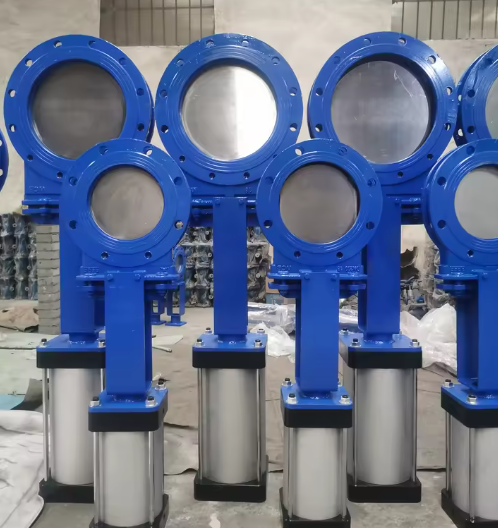

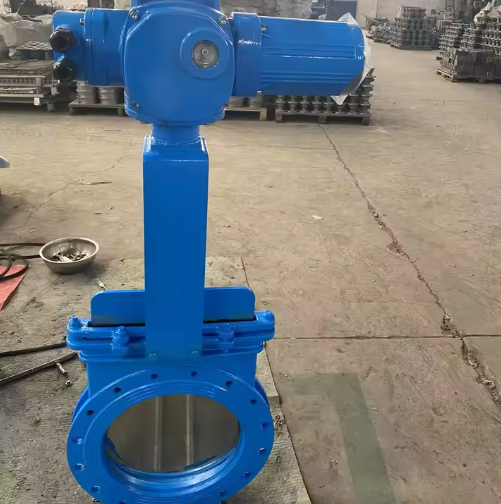

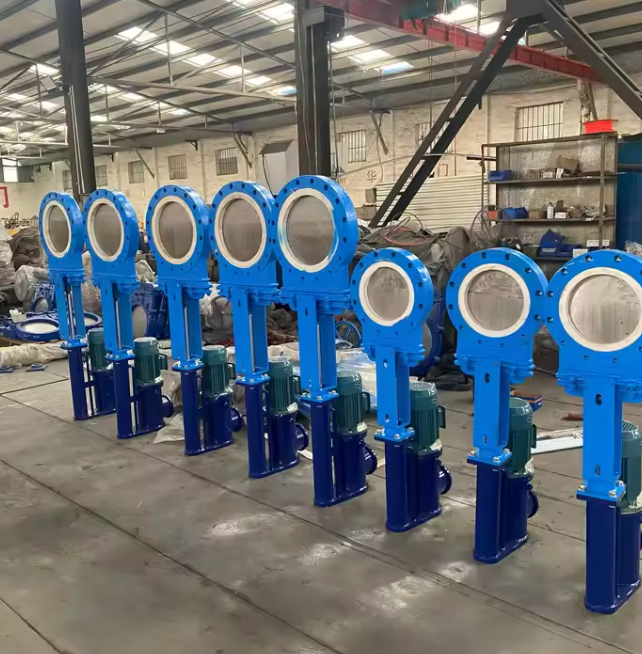

The valve comes with options of resilient rubber or metal seats, depending on the media characteristics. Soft-seat variants are ideal for clean or mildly abrasive fluids, while metal-seat designs cater to high-temperature operations and corrosive environments. Stem options include rising or non-rising types, with manual handwheel, gear gearbox or pneumatic/electric actuator control, allowing for flexible operation across different environments and automation levels.

With pressure ratings from PN10, PN16 up to Class 600 and sizes from DN50 to DN1200 (NPS 2″–48″), the knife gate valve supports a wide range of flow applications. The cast steel construction is capable of handling extreme thermal and mechanical stress, with a working temperature span from -40°C to 200°C. All valves are manufactured to strict standards such as API 609, ASME B16 or equivalent EN norms to ensure safety, reliability and global compatibility.

The durable construction combined with efficient sealing significantly reduces maintenance costs and downtime. Modular design allows for replacement of internal parts without removing the valve body, making in-line servicing simple and cost effective. The robust design is ideal for applications in slurry pipelines, chemical plants, cement production, pulp and paper mills, and other heavy-duty industrial systems.

Factory direct supply ensures competitive pricing, stable production capacity, and OEM customization. Each knife gate valve undergoes rigorous quality control including hydrostatic testing, seat leakage testing, and shell strength verification. With its strong structural integrity and enhanced functionality, the cast steel flanged knife gate valve offers a cost-effective and long-lasting solution for industrial flow control.
