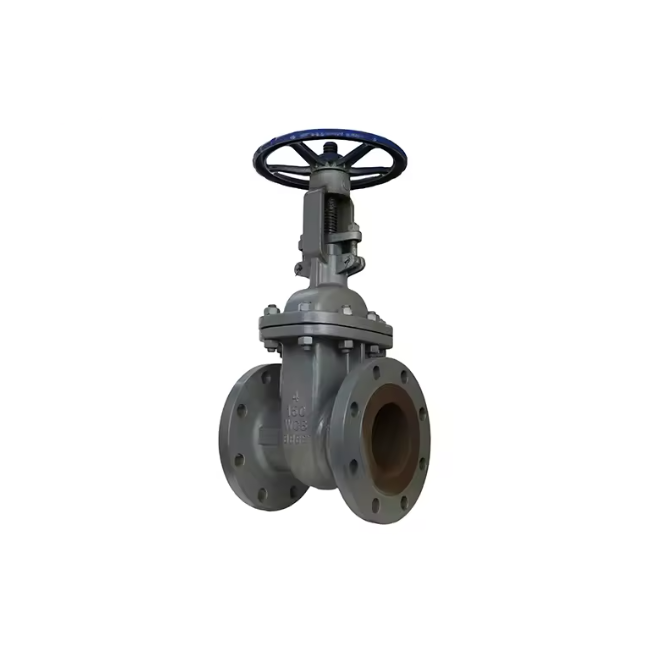

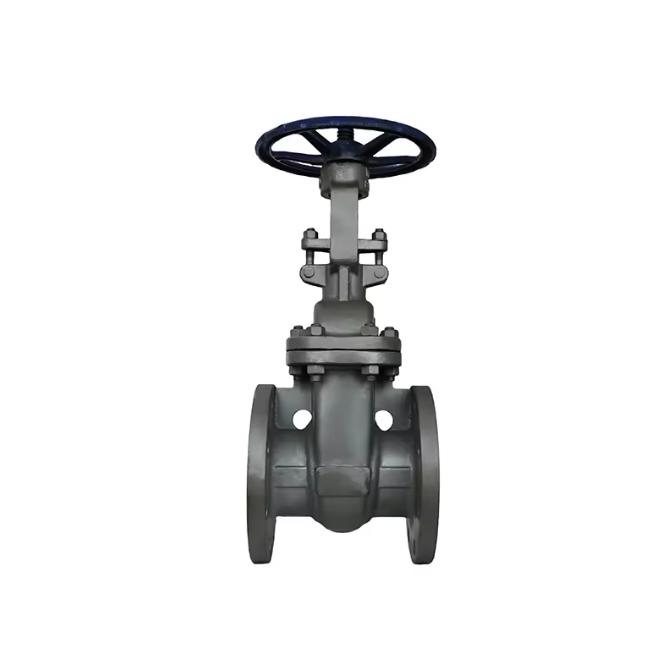

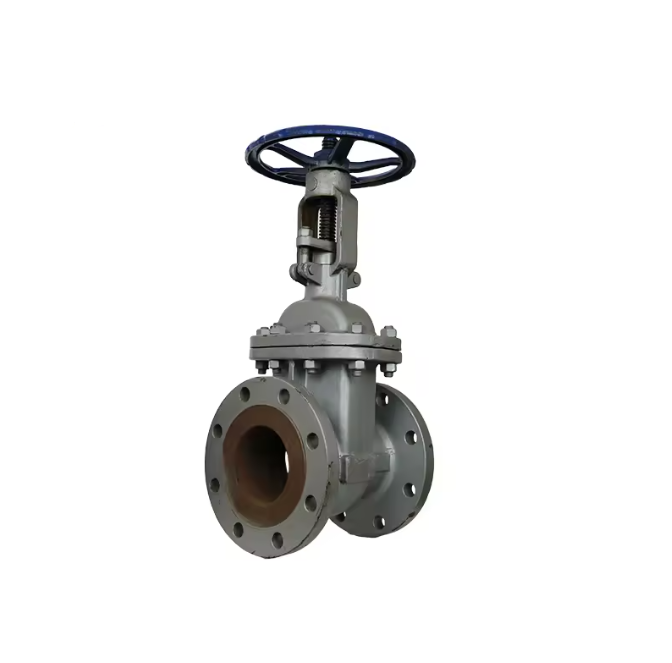

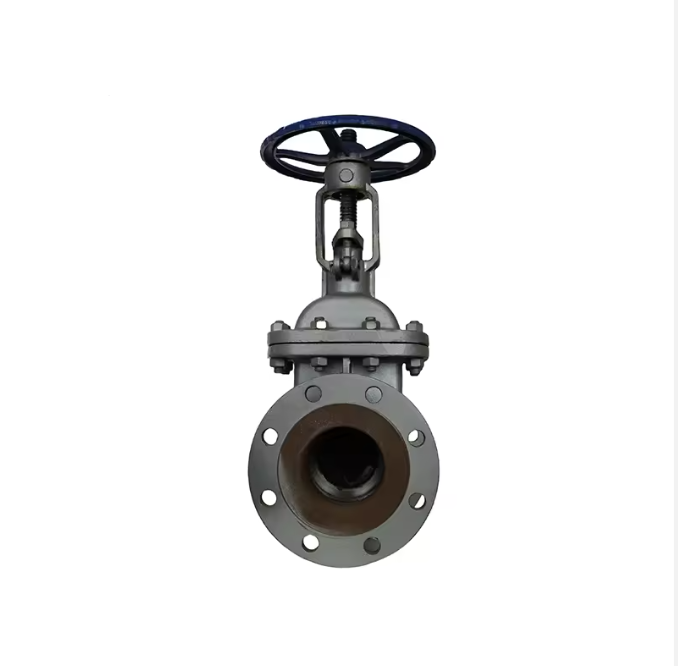

This ANSI flanged gate valve is designed for industrial flow control applications requiring reliable shutoff performance, safety and long working life. The product is available in CF8 or CF8M stainless steel for corrosion resistance, and WCB cast steel for general industrial pressure systems. This flexible material selection ensures compatibility with a wide range of media including water, steam, oil, natural gas, chemical fluids and process pipelines.

The valve adopts a reliable gate structure to achieve linear opening and closing with low fluid resistance, making it suitable for long-distance pipelines and industrial systems operating under continuous flow conditions. When fully opened, the through-channel design minimizes pressure loss, improving energy efficiency and system performance. The valve seat may be supplied in metal or soft sealing configurations depending on working conditions. Metal seats withstand high temperature operation, while resilient soft seats ensure low leak rates and extended sealing life.

The ANSI flanged connection conforms to international standards including ASME B16 and API specifications, supporting compatibility with existing industrial pipeline systems and international engineering procurement. The valve is offered with rising or non-rising stem designs. Rising stem models provide visual position indication for on-site operators, while non-rising stem versions are ideal for confined installation spaces. Operation options include manual handwheel, worm gear, electric actuator or pneumatic actuator to meet different automation requirements.

Manufactured through precision casting and strict machining processes, each valve undergoes shell and seat pressure testing to ensure mechanical integrity and sealing performance before shipment. The corrosion-resistant surface treatment further enhances durability in harsh environments such as chemical plants, wastewater treatment facilities and coastal installations. With strong structural performance, international standard compliance and efficient flow characteristics, this ANSI flanged gate valve is widely used in oil refineries, industrial processing facilities, power stations, commercial building systems, and large municipal pipeline networks.
